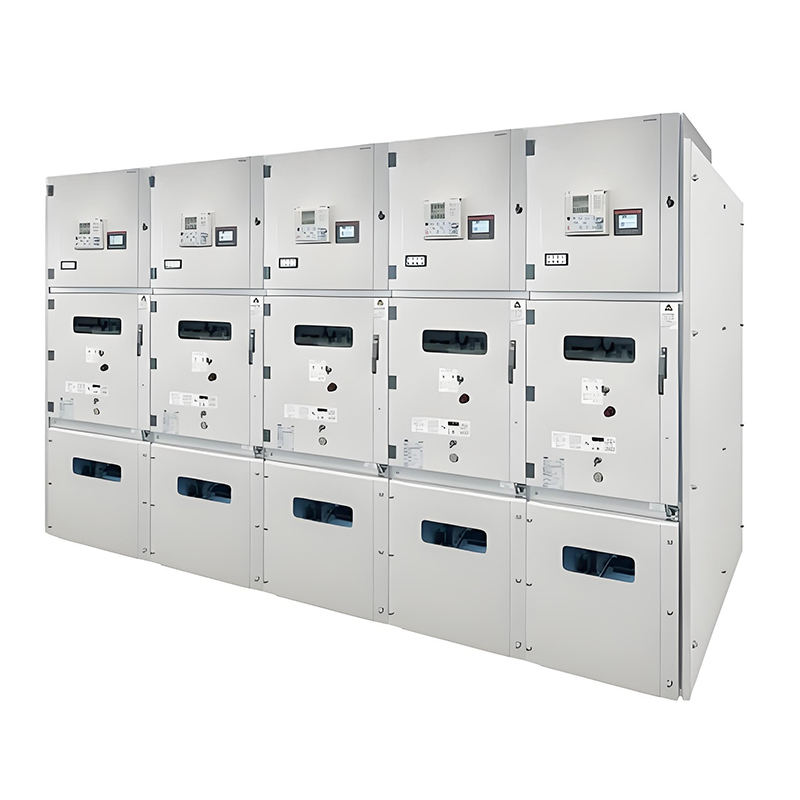

American Standard Armored Removable AC Metal-Enclosed Switchgear

Indoor high-voltage vacuum switchgear (hereinafter referred to as switchgear) is a three-phase AC 50/60Hz, rated voltage 1KV-40.5kV indoor complete power distribution device. It is used in power plants, substations, and industrial and mining enterprises for receiving and distributing electrical energy, playing a role in circuit control, protection, and detection. It can also be used in locations with frequent operation.

Indoor high-voltage vacuum switchgear is a three-phase rated 630A-5000A, 50/60Hz, rated voltage 1KV-40.5kV indoor complete power distribution device. It is used in power plants, substations, and industrial and mining enterprises for receiving and distributing electrical energy, playing a role in circuit control, protection, and detection. It can also be used in locations with frequent operation. The switchgear meets relevant certification standards of ETL, UL, CE, CSA, and IEC. It features interlocking functions to prevent the circuit breaker from closing when the grounding switch is in the closed position, to prevent accidental opening and closing of the circuit breaker, to prevent the circuit breaker trolley from being pushed and pulled under load, to prevent accidental entry into a live compartment, and to prevent accidental closing of the grounding switch while energized.

Its main features include a metal-enclosed, pin-mounted, removable cabinet design, and the use of a new type of fully composite insulated vacuum circuit breaker inside. The cabinet adopts an assembled structure, giving the product advantages such as an aesthetically pleasing appearance, high precision in the fit between the trolley and the cabinet, and good interchangeability. The trolley moves within the cabinet via a screw and nut cranking device, which is convenient and labor-saving. Short-circuit breaking current: 25/31.5/40/50kA. Short-time withstand current: 25/31.5/40/50kA, 4S.

Product Features: Fully enclosed circuit breakers and fully insulated busbars enhance insulation reliability. High-quality Eaton arc-extinguishing chambers and long-life circuit breakers guarantee a 30-year service life. Comprehensive safety interlocks and tested internal arc protection ensure personnel safety. Available in 1200mm wide cabinet solutions. Integrated intelligent solutions tailored to user needs. Special solutions available for high-altitude applications, generator protection, etc. Products meet ETL, UL, CE, CSA, and IEC certification standards.

The switchgear is designed according to the American standard for armored metal-enclosed switchgear. It consists of a cabinet and a withdrawable section (i.e., the trolley). The cabinet shell and partitions of each functional unit are made of aluminum-zinc coated sheet, CNC machined and bent, then connected with rivet nuts and high-strength bolts. This eliminates deviations caused by welding and human factors, ensuring dimensional accuracy. The cabinet is divided into four separate compartments, with an IP4X protection rating.

This switchgear features overhead and cable entry/exit configurations, and can be arranged and combined to form various power distribution systems. Lightweight and economical, the vacuum contactor cabinet is primarily used for switching motors, transformers, and capacitor loads, and is widely used in the nuclear power market. The vacuum contactors (V7/ZVC) equipped in the switchgear can be operated frequently, have an electrical life of up to 100,000 cycles, and exhibit low operating overvoltage.

As an air-insulated, metal-enclosed switchgear, it features an extremely compact cabinet design, with a width of only 1200 mm. It possesses robust mechanical interlocking to prevent misoperation, high structural strength, and can withstand internal arc faults up to 50 kA/1 s.

The design is flexible, allowing for direct splicing with medium-voltage switchgear, and cable entry/exit configurations with bottom or top entry into the cabinet. This cabinet type has undergone comprehensive type testing according to IEC standards and has passed nuclear-grade certification.

Ultra-high Security: Reliable Assurance Through Dual Standards

Our MV Switchgear is designed and tested in accordance with IEEE C37.20.2, C37.20.7 (internal arc) and other IEEE standards, and obtained UL 347 certification. This signifies that the product must verify following rigorous tests:

· Outstanding Insulation and Withstand Voltage Performance: Test withstand exceed rated voltage and lightning impulse voltage to guarantee stable operation in adverse conditions and low risk of insulation failure.

· Outstanding Withstand Short-circuit Current: Test withstand and break peak short-circuit current and verify structural strength, conductor support, and circuit breaker performance to guarantee reliable shock withstand capability.

· Leading Internal Arc Protection (IAC): Implement design in accordance with rigorous internal arc fault standards to guarantee our MV Switchgear control arc energy to protect operator’s safety and adjacent equipment.

Outstanding Features: Complicated Application Scenario

Our IEEE/UL MV Switchgear achieve following outstanding performance and flexibility complying with IEEE & UL specification. It is applicable to each unique project.

· Sturdy Structural Design: Utilize metal, enclosed and armored structure to guarantee high mechanical strength, excellent stability and high IP (Ingress Protection) rate.

· High-efficiency Temperature Rise Control: Implement thermal design and select high-quality conductive materials to control temperature rise compliance with standard requirement, and guarantee reliability and service life during Switchgear long-term operation.

· Flexible Customization Solution: Guaranteeing quality and safety, Customize solution from voltage, current, breaking capacity through to installation.

Why Us? – UL Certification Factory

It is complex project to manufacture IEEE Switchgear in accordance with UL Standards. Our core competitiveness is to manufacture IEEE Switchgear in accordance with UL Standards.

1, Technical Barrier Solver:

UL Standard is complex and rigorous. Our engineering team possess experience in provision of UL Standard and provision conversion to optimal design. We are able to solve technical barrier, and customer don’t need to comprehend provision of UL Standard.

2, Rigorous Certification Bearer:

UL Certification requires destructive tests including but not limited to short circuit test, internal arc test, UL Certification cost is high and UL Certification lead-time is long. Our professional design and comprehensive internal pre-testing can reduce project lead- time and cost and increase certification pass yield.

3, Supply Chain and Compliance Manager:

UL Certification requires selecting critical components from UL listed manufacturers. We possess   stable supply chain of UL-certified components to guarantee materials are traceable, certificates are complete and project noncompliance risk are eliminated.

4, Consistent Quality Guardian:

UL Certification requires UL FUS (UL Follow-Up Services) proceed with inspection every year. We integrate UL quality requirements into our quality management plan to guarantee our quality and model of delivered switchgear is consistent with certified sample.

5, Overall Cost Optimizer:

Choosing us signify customer won’t concern cost and risk associated with UL Certification. Our deliverable is a compliant switchgear with an "UL label", low project cost and risk, fast market access and competitive total cost of ownership.

Choosing us signify choosing strategic cooperative partner possessing UL Standard comprehension, premier design & manufacturing capability and risk-free UL certification. We guarantee to deliver safe, reliable and compliant MV Switchgear to escort customer project in North American Market.
