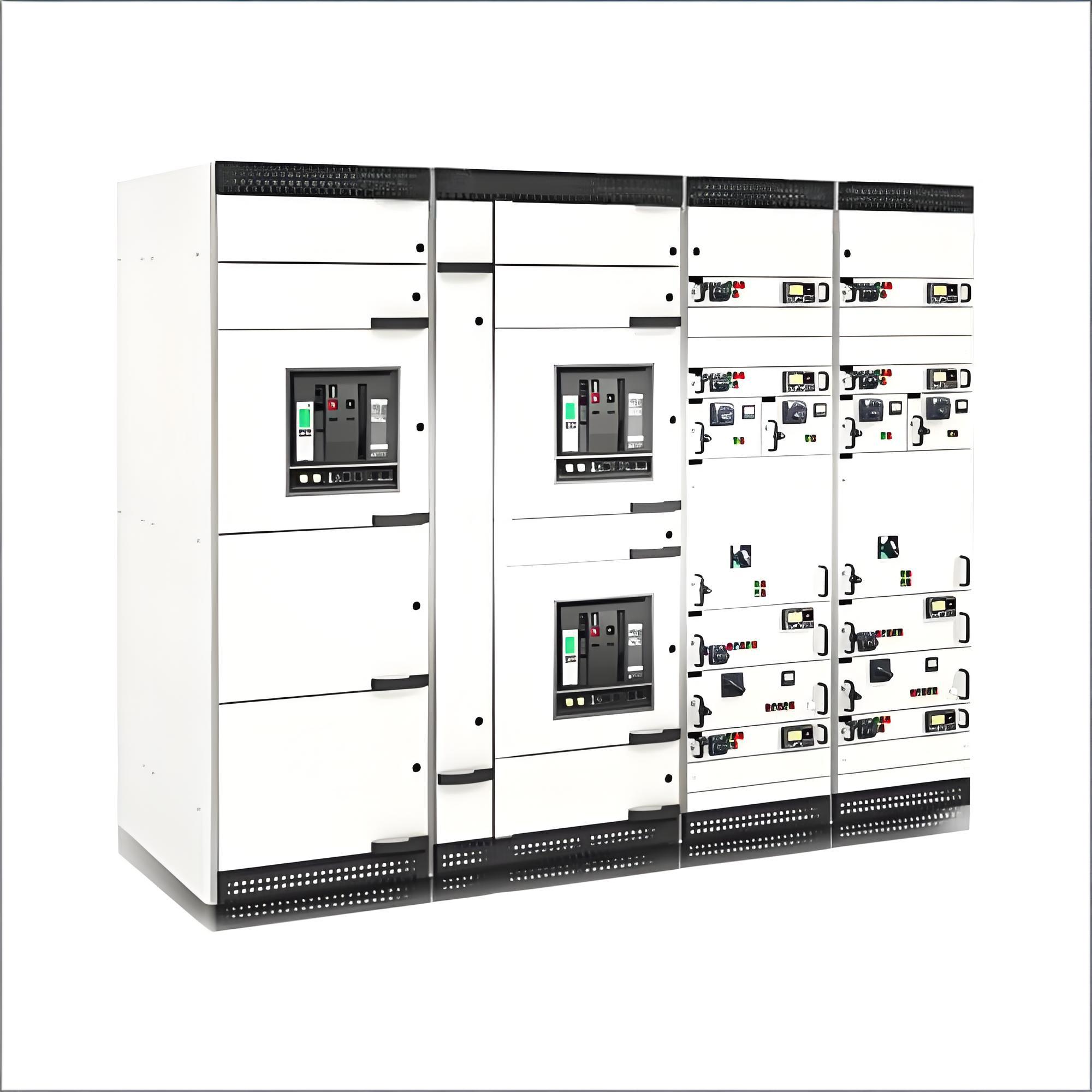

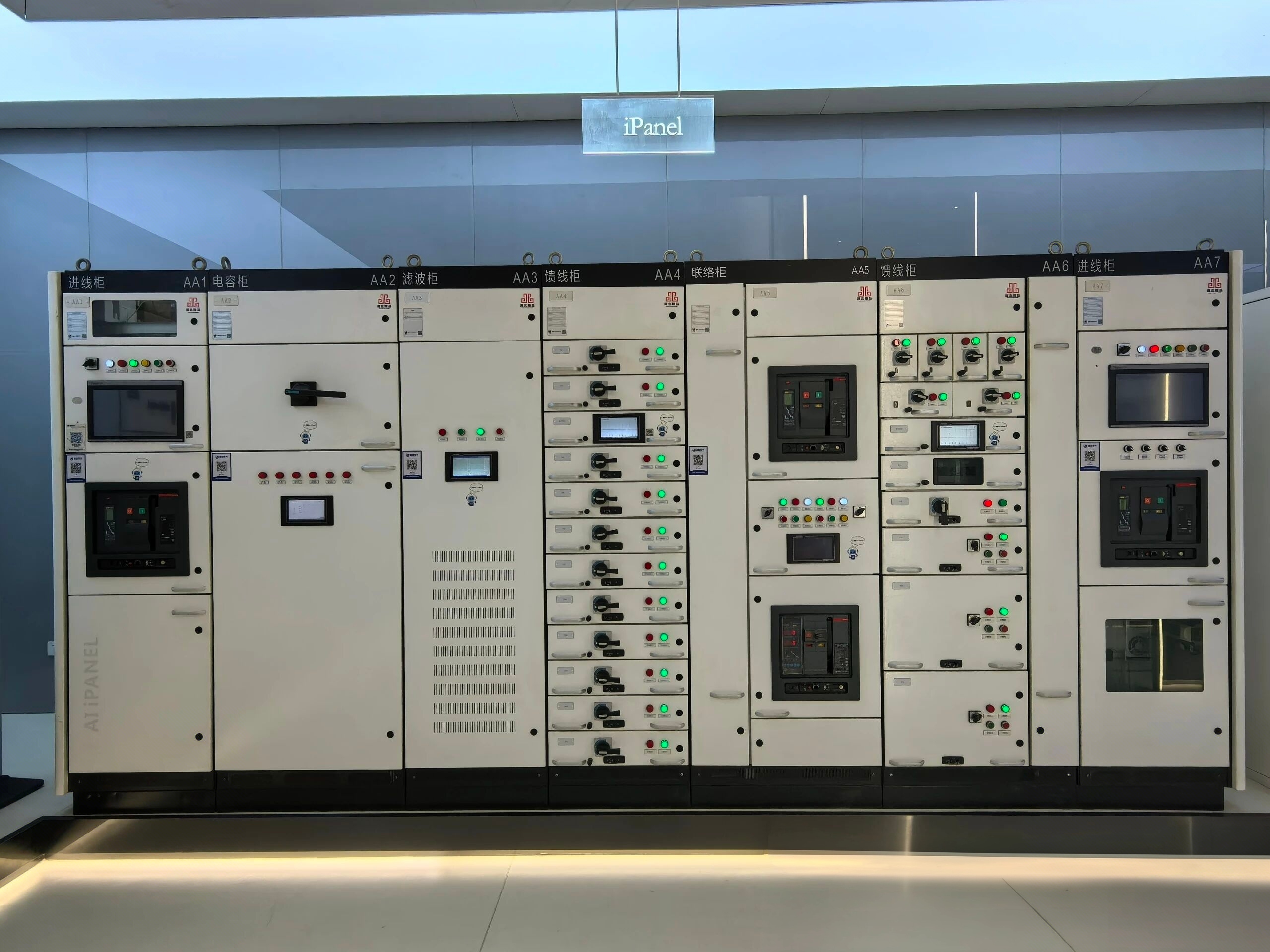

UL891 Switchgear Solution – UL891 Low-Voltage Front-Mounted Cover Switchboard

UL891 – UL Standard for Safety for Switchboards

ANSI/NEMA PB 2.1-2013 – General Instructions for Proper Handling, Installation, Operation, and Maintenance of Deadfront Distribution Switchboards Rated 600 Volts or Less

UL891 low-voltage switchboards typically use fixed-frame circuit breakers and molded-case circuit breakers. Some designs also include withdrawable-frame circuit breakers, but are primarily used for 1000A-4000A current-carrying circuits. The fixed cover design exposes the operating holes for easy operation and maintenance. The switchboard is used for secondary power distribution, directly connecting to loads or distribution boxes. Protection is simple; many circuit breakers lack protection and measurement functions, requiring direct manual operation. Main bus current can reach 6000A, and short-time withstand current is 100kA.

Compartmentalized Structure: The distribution panel employs a compartmentalized design, placing components with different functions, such as busbars, circuit breakers, and contactors, in separate compartments to prevent the spread of faults and mutual interference, thereby improving system safety and reliability. Distribution panels typically install fixed frame circuit breakers and molded case circuit breakers; therefore, a fixed cover is used at the front, exposing only the operating holes. The DEAD FRONT COVER is a fixed front cover type. The distribution panel is small in size, with a depth generally not exceeding 1.3 meters, and cables enter and exit through the entire base plate.

The distribution panel conforms to the UL891 standard for power distribution equipment and can be front-entry or rear-entry. Frame circuit breakers serve as incoming line isolation, and molded case circuit breakers serve as outgoing lines. They can be fixed or quick-plug type, using a group installation structure, i.e., molded case circuit breakers are installed horizontally, with one side connected to the vertical busbar and the other side directly connected to the cable. Incoming lines can be connected at the front or rear of the cabinet, and outgoing cables exit from the side.

Distribution panels also include designs for withdrawable frame circuit breakers, primarily for outgoing circuits with currents above 1000A. However, installation density and current ratings are not high; they serve more as a complementary solution to molded case circuit breakers. Installing frame circuit breakers requires rear wiring, making them unsuitable for wall-mounted applications. The design meets ETL, CE, CSA, and IEEE C37.20.7 certification standards.

Front-door access design: Mostly front-door access types, allowing all operations and maintenance to be performed from the front of the distribution panel without needing to access the rear, facilitating daily inspection and maintenance.

Rated voltage: Typically 600V and below, commonly 120V, 208V, 240V, 277V, 480V, etc.

Rated current: ranging from hundreds to thousands of amperes, such as 400A, 600A, 800A, 1000A, 1200A, 1600A, 2000A, etc., with some large switchboards reaching 6000A.

Short-circuit withstand current: typically between tens of thousands of amperes and 200kA, such as 100kA, 150kA, 200kA, etc.

UL891 low-voltage switchboards are widely used in commercial and industrial power distribution systems, such as:

Commercial buildings: such as shopping malls, office buildings, hotels, etc., meeting the power distribution needs of a large number of lighting, air conditioning, elevators, and other equipment.

Industrial plants: suitable for power supply and distribution of various industrial production equipment, such as factory production lines, motors, cranes, etc.

Data centers: requiring extremely high stability and reliability of power supply, UL891 low-voltage switchboards ensure the safe and stable operation of critical equipment such as servers and storage devices in data centers.

Safety Requirements: UL891 low-voltage switchboards have stringent requirements and tests regarding insulation, grounding, and short-circuit protection, effectively preventing injury and damage to electrical equipment and personnel. The switchboard also features emergency disconnection devices and arc flash protection.

Maintenance: Regular cleaning, wiring inspection, and screw tightening of the switchboard can extend its lifespan and ensure stable operation. Maintaining complete maintenance and operation records is also crucial.

In summary, the UL891 low-voltage switchboard is a compact, high-performance, and reliable electrical device widely used in commercial and industrial sectors. To ensure its safe and stable operation, operation and maintenance should be strictly performed in accordance with relevant standards and procedures.
