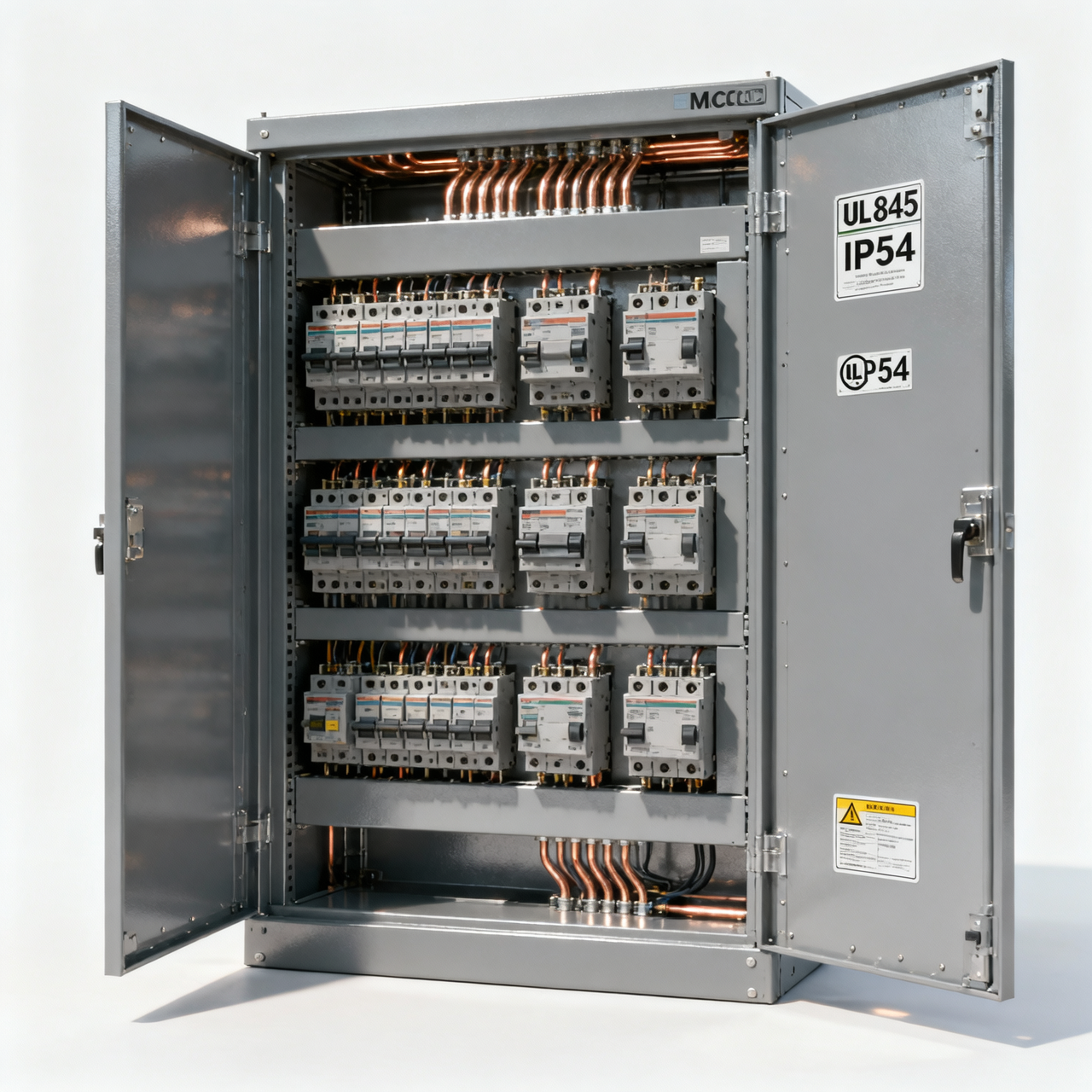

The American Standard MCC cabinet, or Motor Control Center cabinet, is a low-voltage power distribution device that integrates motor control, protection, and monitoring functions. It is widely used in industrial production and infrastructure. MCC control cabinets have a broad application range, including manufacturing, power systems, water treatment, and mining. Its main function is to centrally manage and control multiple motors.

The full name of the MCC cabinet is Motor Control Center cabinet, a type of low-voltage power distribution equipment. It centralizes the control functions of multiple motors, including starting, stopping, and speed adjustment. It features standardized component design and unified management and control. Motor control is achieved through electrical components. When the operator presses the start button, the control circuit sends a signal to the contactor. After the contactor engages, the main circuit is connected, and the motor starts running. If the motor experiences overload or short circuit, the thermal relay or circuit breaker will quickly cut off the power supply to protect the equipment from damage.

For highly automated systems, PLCs can be programmed to implement complex logic control, such as timed start-up and multi-motor linkage. Modern MCC control cabinets may also be equipped with communication modules to upload operating data to a monitoring system, facilitating remote management and fault diagnosis. Complies with UL845 standards and relevant ETL, CSA, and CE standards.

The UL American standard MCC motor control cabinet standard differs from IEC/GB standards, as evidenced by a series of independent standards, including UL 845, UL-508A, NEMAT ICS 18, CSATC 22.2 No. 14, and NMXJ353. These standards cover various details, ensuring the safety and functionality of the equipment. The UL845 low-voltage motor control cabinet, with its unique motor starter unit bracket mounting method and top busbar design, achieves a minimal depth, typically only 22-30 inches (559-762 mm), thus meeting the needs of various space constraints.

Functions (Core Functions)

1. Motor Control: Motor start, stop, and forward/reverse rotation can be controlled using contactors or buttons; remote signal operation is also possible.

2. Speed Regulation and Energy Saving: Equipped with a frequency converter or soft starter, it can adjust the motor speed to meet the needs of different operating conditions and save energy.

3. Multiple Protections: Includes overload, short circuit, and phase loss protection functions. It automatically cuts off power in case of circuit problems, protecting equipment safety.

4. Remote Monitoring: Connects to SCADA systems, displaying real-time operating status, providing immediate alarms in case of problems, and enabling remote operation.

5. Power Distribution: As a low-voltage power distribution device, it can simultaneously supply power to multiple loads, resulting in higher energy efficiency.

6. Fault Detection: The intelligent protector can recognize 12 common faults, providing a reference for equipment maintenance.

Applications (Scenarios):

1. Industrial Production: Used to control pumps and fans in the petrochemical industry, smelting furnaces and conveyor belts in the metallurgical industry, and hoists and conveyor belts in the mining industry.

2. Infrastructure: Used for pump control in water treatment plants, operation of sewage treatment equipment, and management of substation equipment and power distribution systems.

3. Applicable Loads: Primarily controls motors below 75kW, suitable for applications requiring simple control and no complex logic processing.

4. Structural Type: Common types include GCK and MNS modular low-voltage withdrawable switchgear, utilizing a modular design with 20mm modular mounting holes for easy expansion and maintenance.

Reliable Structure and Durable Materials: The product has passed a Class A severity corrosion resistance test and verified its thermal stability, fire resistance, and internal electrical effect protection capabilities. Its enclosure features a dustproof and waterproof design, achieving IP4X/IP54 protection ratings under various ventilation configurations. Internal isolation meets Form 4b and IP2X standards.

Superior Electrical Performance: The PSC components successfully passed clearance and creepage distance verification under pollution level 3, rated impulse withstand voltage of 6 kV, and rated insulation voltage of 690 V.

The main busbar and 4000 A incoming line unit passed an 80 kA rms short-circuit withstand test (peak 176 kA), ensuring electrical continuity under extreme conditions.

Outgoing line units from 16 A to 250 kW DOL all passed an 80 kA rms short-circuit test, demonstrating stable performance.

Temperature Rise and Heat Dissipation Performance,Under 35/40°C environmental conditions, PSC components exhibit excellent current carrying

 capacity:

Rated current 2050 A under IP54 natural ventilation;

Increased to 2750 A under IP4X forced ventilation.

Safety and Intelligent Protection

All exposed conductive parts, protection circuits, and electromagnetic compatibility performance are verified and have undergone additional internal arc fault testing (90 kA rms), ensuring the safety of both personnel and equipment.

Providing safe and reliable power for machinery in most countries worldwide. Possesses years of experience and professional technical expertise in motor control.

Medium-voltage motor control products and solutions can operate independently or as part of integrated and scalable systems.

Motor control parameters up to 7.2 kV, 50 kA, can be directly connected to switchgear, extending outwards from both sides of the switchgear.

Excellent performance, high-quality requirements, meeting numerous international standards, and certified by the renowned ASEFA laboratory.

Excellent EMC electromagnetic compatibility performance, meeting on-site anti-interference requirements, with up to 85kA 0.5s arc resistance and seismic intensity of 9 degrees, meeting on-site operation and maintenance safety and vibration environment requirements.

In industry, buildings, and infrastructure, the operation of various systems relies on a safe and reliable power supply. Even a brief power outage can have serious consequences. Therefore, you need products and systems capable of handling various accidents to meet safety requirements. Xuanhong Power, as a leading global supplier of power distribution systems, provides customers with stable, reliable, safe, and intelligent power distribution solutions. Whether it's energy security or energy efficiency management, UL/ETL standards safeguard your safety and reliability with their stringent safety and reliability standards.

Lightweight and economical vacuum contactor cabinets are mainly used in switching motors, transformers, and capacitor loads, and are widely used in the nuclear power market. The vacuum contactors V7/ZVC equipped in the switchgear can be operated frequently, with an electrical life of up to 100,000 cycles and low operating overvoltage.

As an air-insulated, metal-enclosed switchgear, it features an extremely compact cabinet design, with a width of only 325 mm. It possesses comprehensive mechanical interlocking to prevent misoperation, high structural strength, and can withstand internal arc faults up to 50 kA/1 s.

The design offers flexibility, including direct splicing with medium-voltage switchgear, and cable entry/exit options such as bottom or top entry into the cabinet. This cabinet type has undergone comprehensive type testing according to IEC standards and has passed nuclear-grade certification. It meets relevant ETL, UL, CE, CSA, and IEC certification standards.
