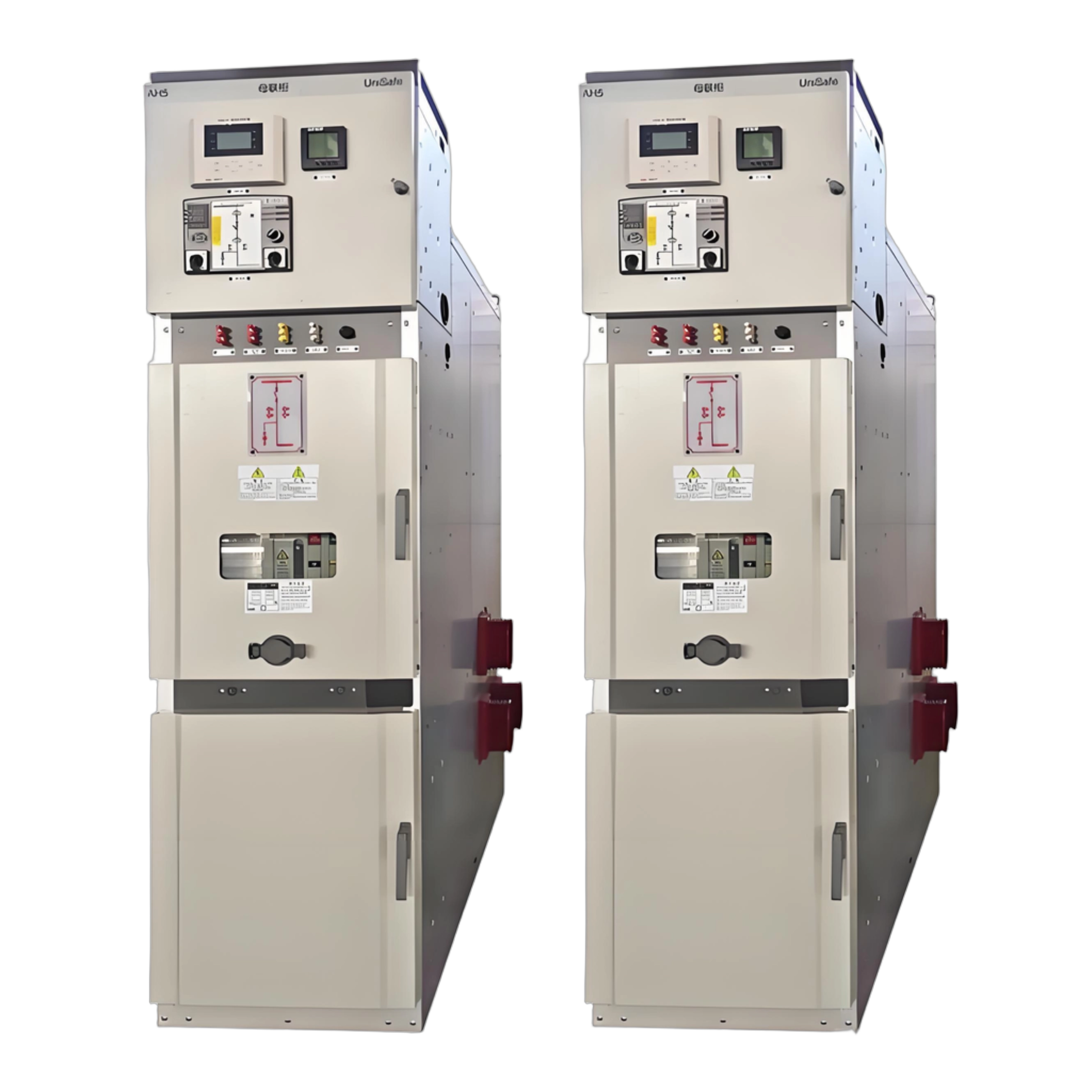

CONTINUOUS CURRENT                            1200 A to 3000 A, 4000 A fan cooled

RATED MAXIMUM VOLTAGE                                4.16 kV, 38kV

INTERRUPT RATING                                 Up to 63 kA rms symmetrical

BASIC IMPULSE LEVEL (BIL)                         4.76 kV class-60 kV peak, 15kV class-95kV peak

ANSI / IEEE STANDARD                          C37.20.2; Arc-Resistant tested to C37.20.7 (Type 2B)

THIRD PARTY APPROVAL/RECOGNITION                 UL, CSA, or CSA(US)  available for most ratings

SEISMIC QUALIFICATION                           IBC, CBC, OSHPD/HCAI available for most ratings

ACCESS                                            Front & rear required

BUS INSULATION                                     Epoxy (fluidized bed)

BUS SUPPORTS                                     Glass polyester, Epoxy

ENCLOSURE TYPE                                    Indoor & outdoor

SWITCHING DEVICE                                  Vacuum circuit breaker

AUXILIARY DRAWERS                        Control power transformers, voltage/potential transformers, power fuses

DEVICE MOUNTING                                     Draw-out

Customization, ease of maintenance and enhanced safety.

Customization: standard design is highly flexible on bus arrangement, control power, relaying, and accessories.

Ease of maintenance: drawout vacuum breakers have up to 10,000 operations, drawout instrument transformers, and isolated low voltage compartment.

Enhanced safety: fully compartmentalized construction, grounded barriers, mechanical interlocks, breaker shutters, and fully insulated bus keep operators segregated from medium voltage. Remote breaker racking is an available option. Active arc extinguishing system is also an available option.

Critical main service entrance protection and control for large installations including industrial plants, buildings, data centers, hospitals, utility generation systems, and water/wastewater plants.
