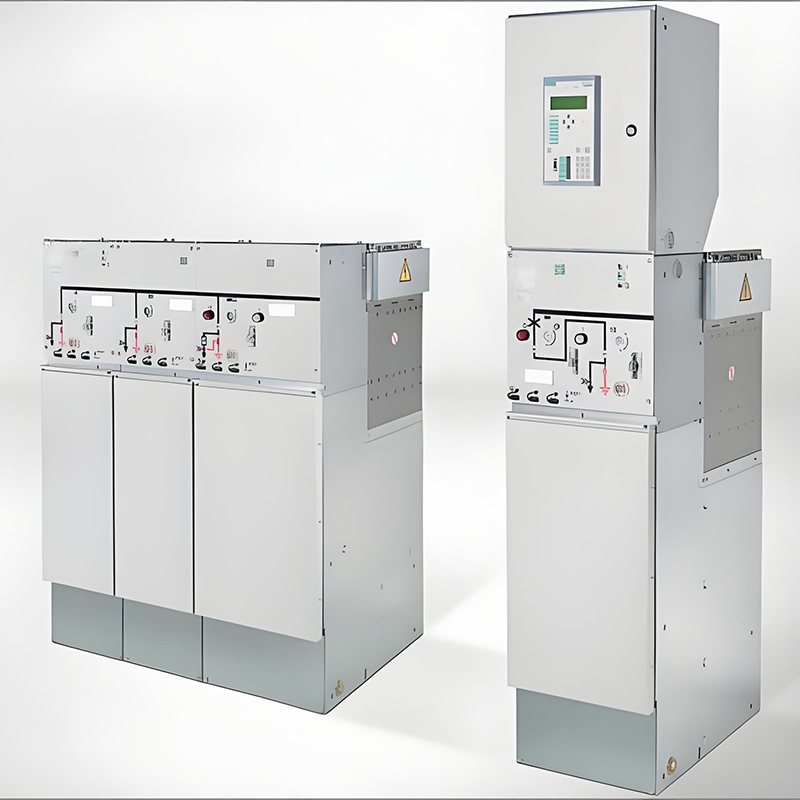

American Standard Medium Voltage Air-Insulated and Gas-Insulated Railway Switchgear

Provides a wide range of applications for railway traction power supply systems, from 16.7 Hz to 25 Hz and 50 Hz to 60 Hz, including single-pole and double-pole feeder substations, switching stations, autotransformer stations, and substation automation (local control and protection).

American Standard Medium Voltage Air-Insulated Railway Switchgear is a new, modern, advanced single-pole air-insulated switchgear that meets the needs of the 16.7 Hz and 50 Hz markets.

Railway Medium Voltage Gas-Insulated Metal-Enclosed Switchgear and Control Equipment is a single-pole or double-pole air-insulated switchgear specifically designed for electric railway traction systems, meeting a variety of requirements.

Railway Medium Voltage Gas-Insulated Metal-Enclosed Switchgear and Control Equipment, tailored for electric high-speed railway traction systems, is a gas-insulated switchgear product from the ABB series, adhering to ABB's advanced design philosophy, and specifically developed for electrified railway locomotive traction power systems. The high-voltage compartments are independent, and the high-voltage components are sealed within a stainless steel housing filled with SF6 gas.

This helps improve the reliability and flexibility of railway power supply, enhances personnel and equipment safety, provides more convenient service, and offers effective cost control. Both single-pole and double-pole solutions are available.

Key Features: Rated Voltage: 27.5 / 2 x 27.5 kV, Rated Frequency: 50 Hz-60 Hz, Rated Current: 2500 A. The use of digital protection and control technology, sensor systems, and plug-in connections ensures seamless future connectivity while unequivocally fulfilling the most essential function: reliable power transmission.

These stringent quality requirements from UL standards leave no room for customer dissatisfaction.

Single-Phase Air-Insulated Medium-Voltage Switchgear for Railway Power Supply

Medium-voltage air-insulated switchgear for railway power supply consists of side-by-side arranged single-phase air-insulated cabinets. The circuit breaker control panel houses drawer-type single-phase vacuum circuit breakers for railway power supply.

Medium-voltage air-insulated railway switchgear conforms to IEC 60298 and 60694 standards and specifications for factory assembly, metal enclosure, and type testing of high-voltage switchgear. It meets ETL, UL, CE, CSA, and IEC certification standards.

Each cabinet is divided into several compartments for electrical equipment (busbars, circuit breakers, cable compartments) and auxiliary equipment (low-voltage compartments, connecting conduits), separated by metal partitions. This design ensures personal and equipment safety in the event of an internal arc fault.

Key Advantages:

· Customizable and integrateable to customer needs

· Rated voltages of 36 and 40.5 kV, rated frequencies of 16.7 and 50 Hz

· Provides a high level of protection for personnel and equipment

· SF6 gas-free, reducing the risk of human error, easy to install, requiring only limited high-voltage testing during commissioning

· Maintenance-free components, allowing for circuit breaker maintenance and repair without downtime

· High power supply reliability and durability

Key Features:

· Modern design with a three-phase standard control panel

· Metal-clad arc-resistant structure and drawer-type design

· Arc-resistant design compliant with IEC 62271-200 standards: IAC AFLR 25 kA, 1 second (50 Hz) and IAC AFLR 40 kA, 0.5 seconds (16.7 Hz)

· Metal shield automatically operated by the circuit breaker locomotive

· Leakage-proof grounding switch

· Suitable for advanced control and protection terminals as well as "classic" protection relays
